AIRCRAFT / AERO FUTURE
DK-TF500
Oil-Powered Tandem-Rotor Unmanned Helicopter
- Patrol and monitoring
- Fire prevention and extinguishing
- Material transportation and delivery
- Search and rescue
Perspective
- Take-off and landing condition
- 20 × 20 m
- Fuselage height
- 1,800 mm
- Maximum take-off weight
- 650 kg
- Load capacity
- 200–300 kg
A CLOSER LOOK
Explore every angle.
PRODUCT DETAILS
Specifications.
Values from the supplied product brochure. Performance depends on payload and operating conditions.

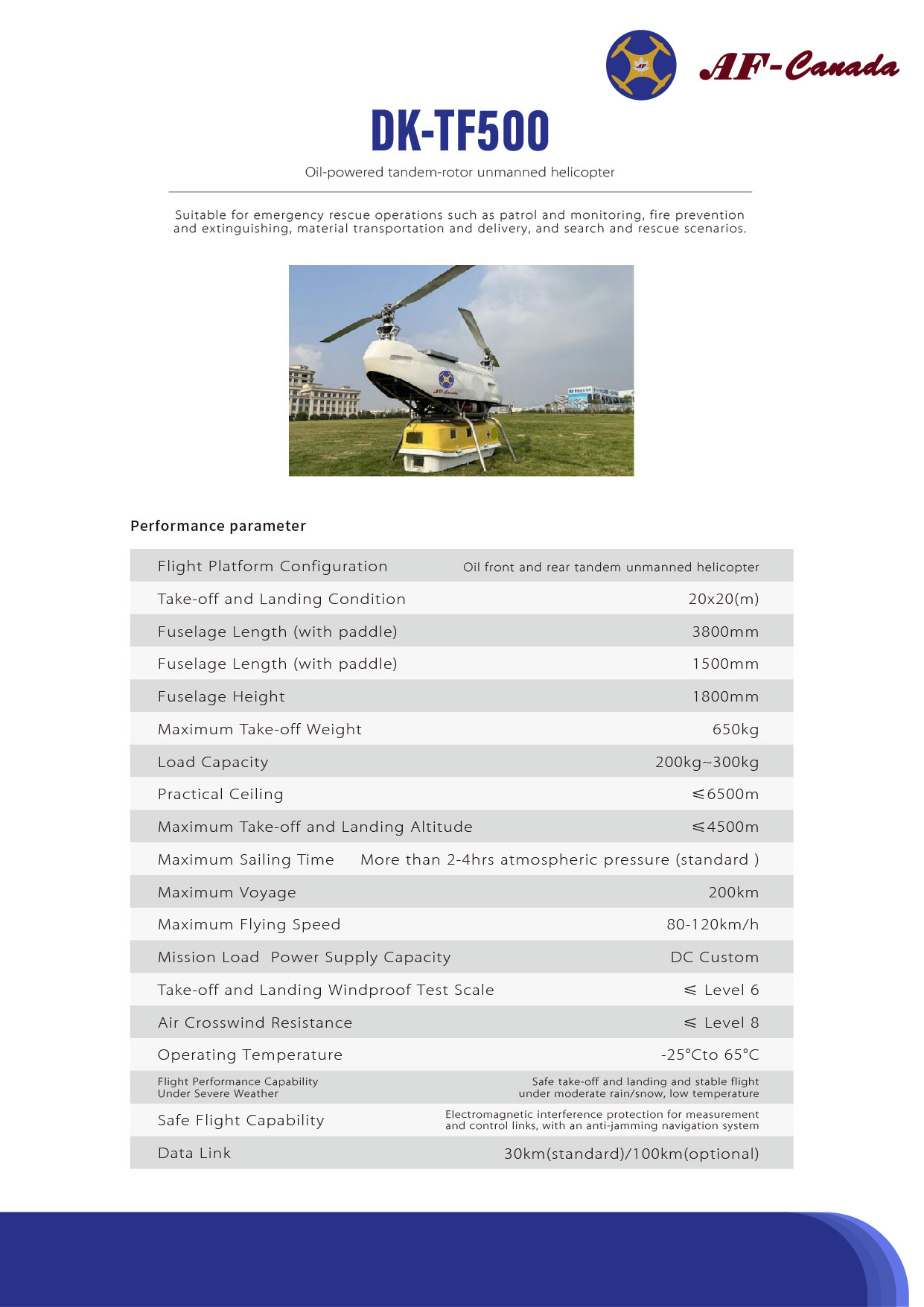

View brochure page 6- Flight platform configuration
- Oil-powered front and rear tandem unmanned helicopter
- Take-off and landing condition
- 20 × 20 m
- Fuselage height
- 1,800 mm
- Maximum take-off weight
- 650 kg
- Load capacity
- 200–300 kg
- Practical ceiling
- ≤6,500 m
- Maximum take-off and landing altitude
- ≤4,500 m
- Maximum voyage
- 200 km
- Operating temperature
- −25°C to 65°C
- Data link
- 30 km (standard) / 100 km (optional)
